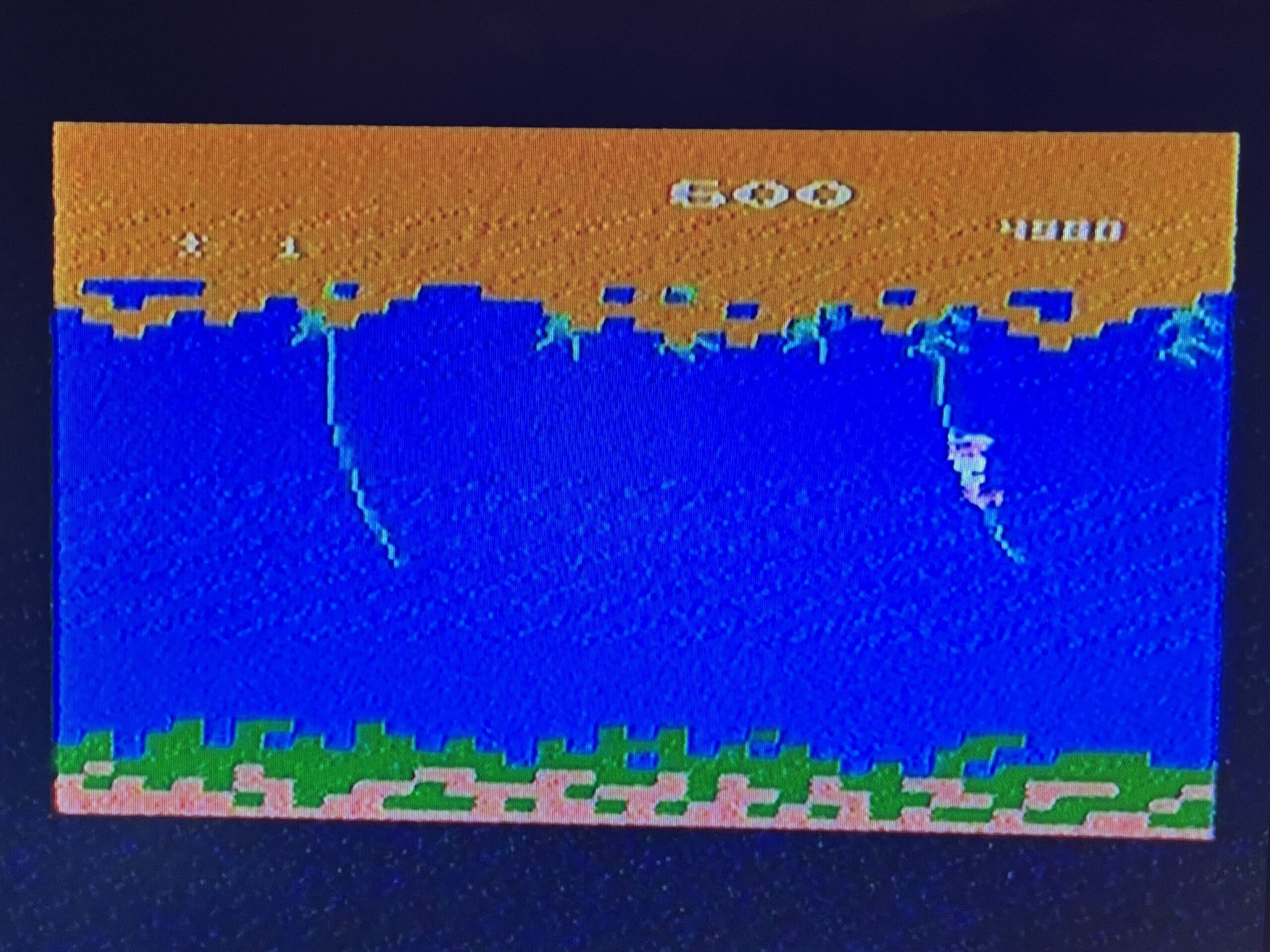

Because I like retro gaming, preserving and enhancing the experience of playing on original hardware is something I enjoy. My Atari 2600, though charming in its vintage aesthetic, wasn’t delivering the crisp visuals I wanted on my current setup. It always had lots of interference on screen which made playing on it less enjoyable. After some research on YouTube, I decided to install a Composite AV Mod to improve the image quality. The mod kit, which I found on eBay and shipped all the way from Italy, promised to transform the old RF output into a cleaner composite signal.
The Installation Process
The kit arrived with all the necessary components (man, they were small!!) and a set of instructions. Excited to get started, I set up my workspace and grabbed my trusty soldering gun. Or so I thought.

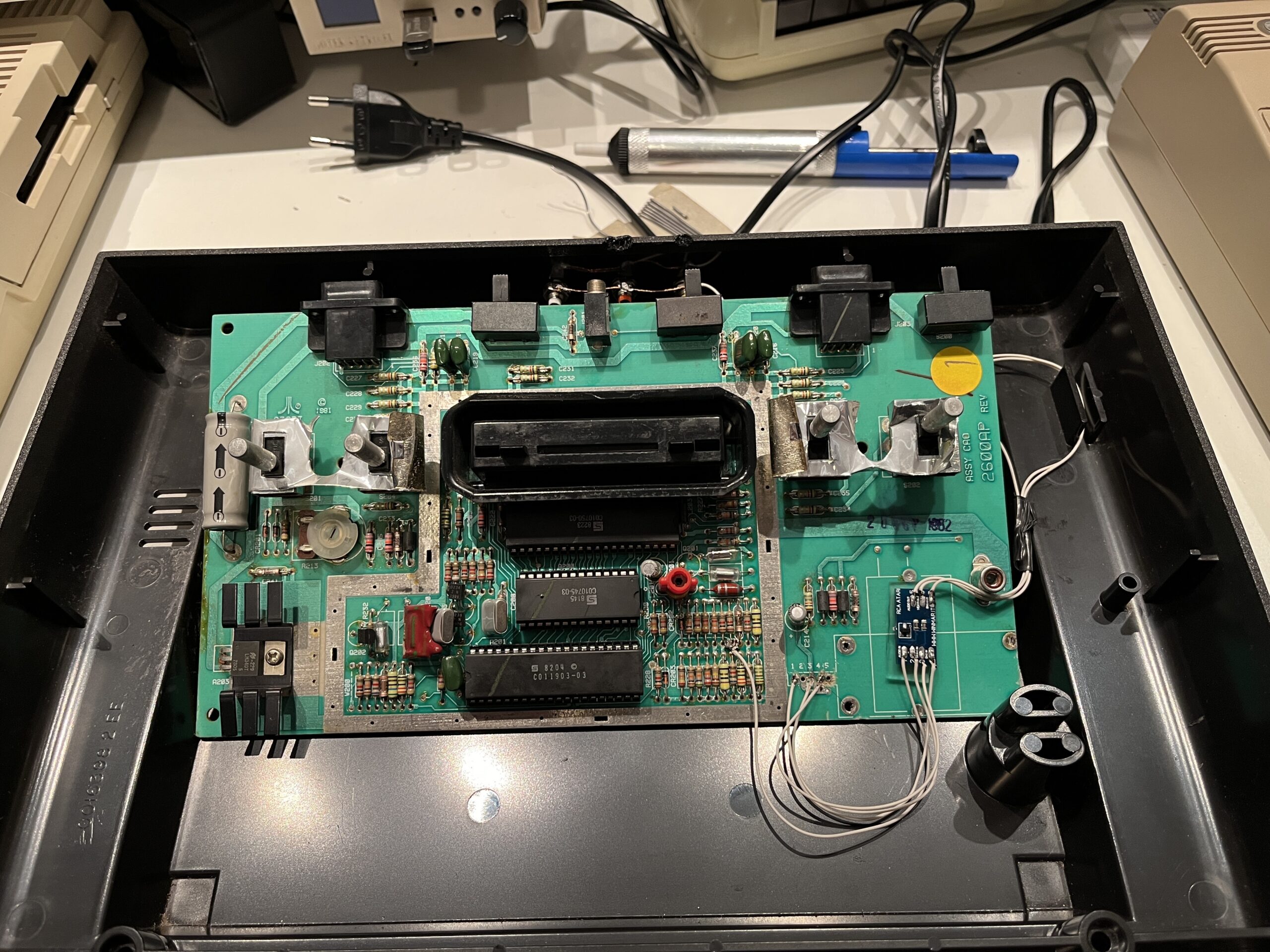

The modding process itself wasn’t overly complex, but it required some patience. Disassembling the Atari 2600 was straightforward, as I’ve tinkered with electronics before. Installing the new components onto the board, however, turned into a battle against my soldering gun, which refused to reach a proper working temperature. Soldering wires and components to the tiny contacts on the circuit board became a small nightmare.
One key part of the installation involved removing the RF modulator from the board. I also had to cut away a transistor and, to accommodate the RCA jacks, I drilled a few small holes in the back of the console.
Once the mod was done, I tossed that underperforming soldering gun straight into the trash. It had served its last purpose, and not very well at that!
The Results

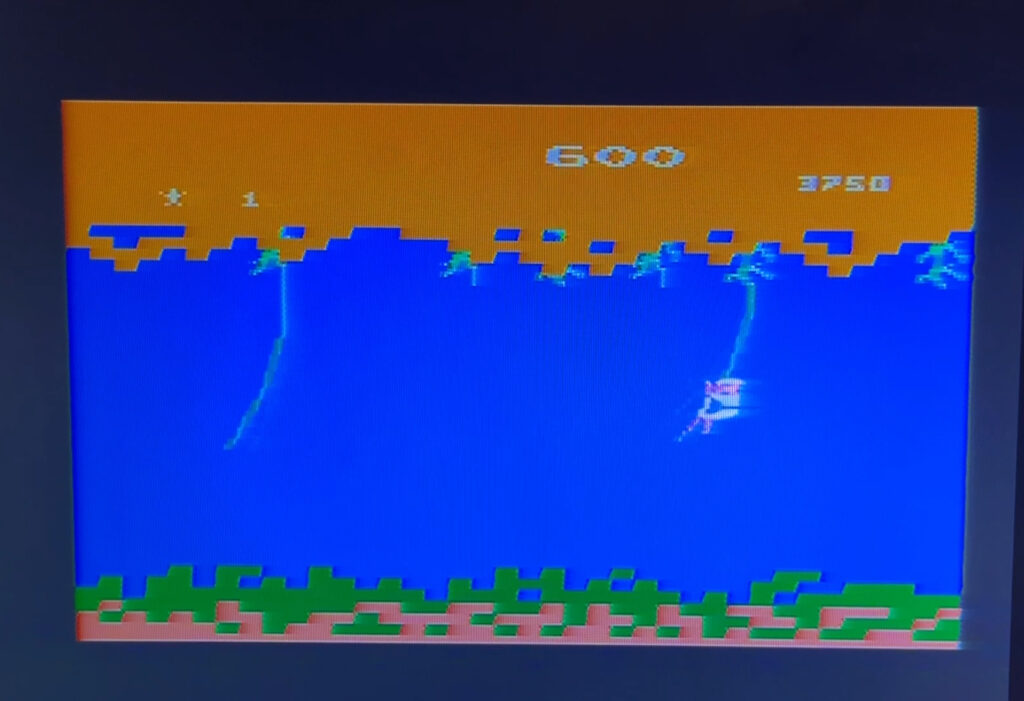

With the mod installed, I connected my Atari 2600 to my screen using the new composite cables. The difference was night and day! The image quality was so much better , with less interference and fuzziness. Games like Jungle Hunt and Moon Patrol looked better than ever, breathing new life into this beloved console.
Final Thoughts
Installing the Composite AV Mod was definitely worth the effort, even with the struggles caused by my soldering equipment. The improved visuals have made playing the Atari 2600 more enjoyable. If you’re considering this upgrade for your own 2600 console, I highly recommend it—just make sure your soldering gun is up to the task!
